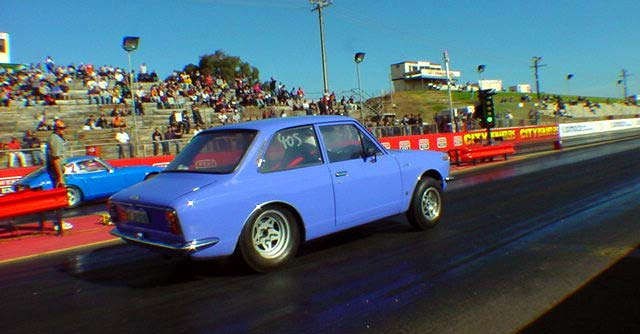

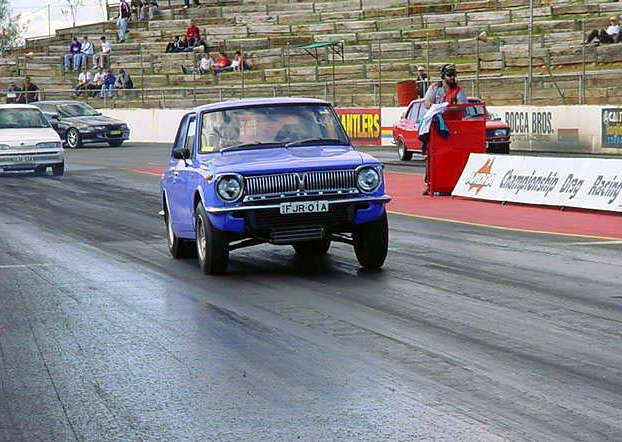

Model: 1969 Toyota Corolla KE10

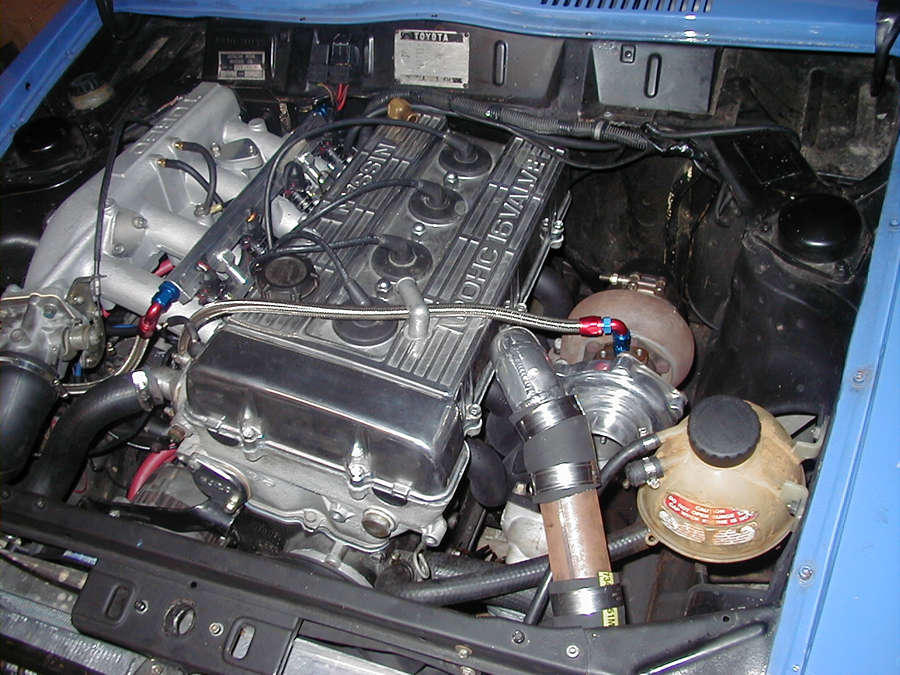

Engine: Nissan FJ20ET turbo 1990cc DOHC 16 valve four cylinder, Garrett T04 turbocharger.
JE forged pistons,
balanced and shot peened
crank and rods,
O-ringed block, ported head,
tuned length exhaust manifold,
Turbonetics 42mm racegate,
latest version EMS engine management,
550cc series 5 turbo injectors.

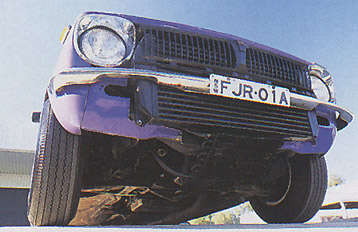

Kenworth intercooler,
Mercedes injectors.

Performance: 200 kw (268 HP) at the rear wheels.

Driveline: Raceglide, 5500rpm Dominator stall converter, custom tailshaft,
Shortened and locked Series 3 Bluebird diff,
B and M pro ratchet shifter and competition transbrake.

Brakes & Suspension: KE30 front struts and brakes, Nissan rear drums,

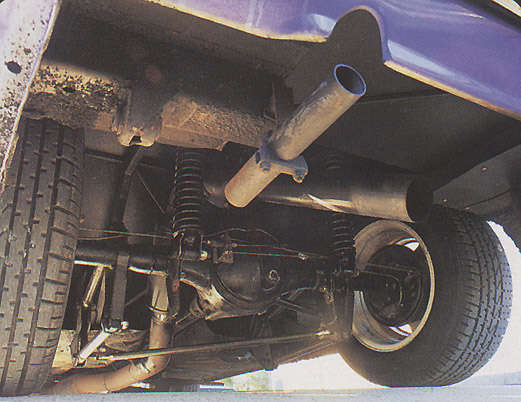

adjustable four-link rear, tubs.

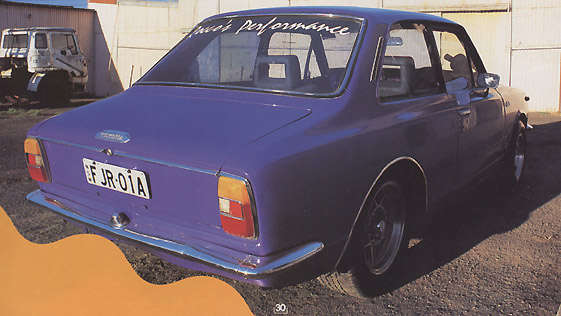

Exterior: Bell Flower Purple Paintwork,

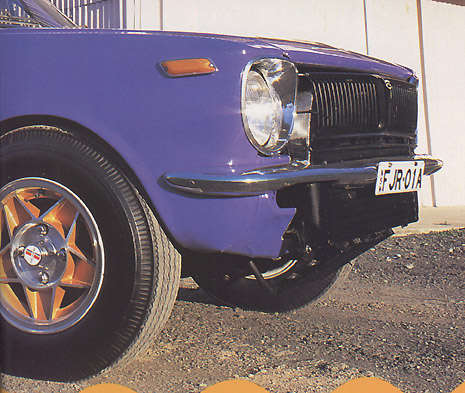

Bathurst Globes, 13x5.5(F) 15x7(R)

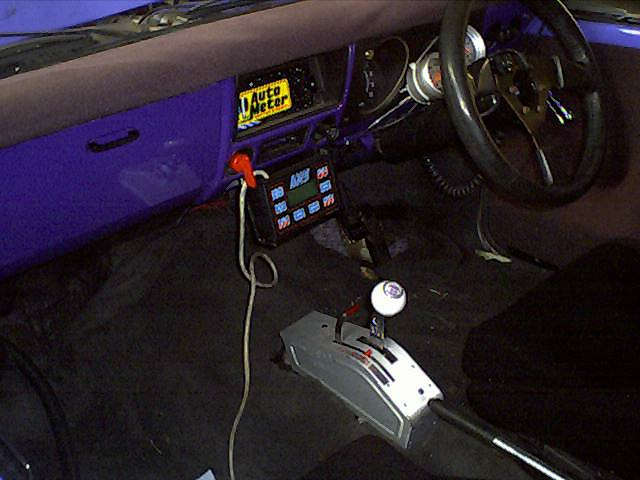

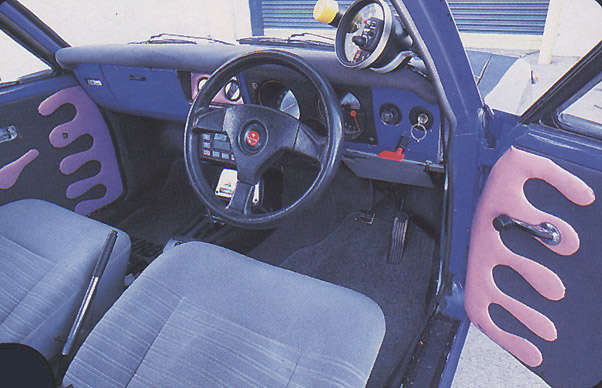

Interior: Autometer monster tacho,
boost and oil pressure gauges,
custom door trims,
VL seats were replaced by Aerotech racing seats with four point Sabelt harnesses.
