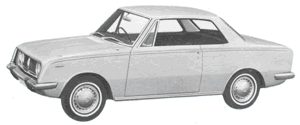

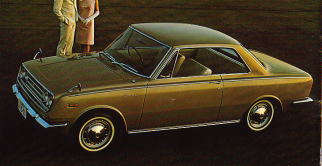

RT50 Toyota Corona Hardtop Coupe |
RT50/RT51 General
Specifications:
For Australian Delivered Model. Engine: 2R in
Early 1500 2-door Model,
|

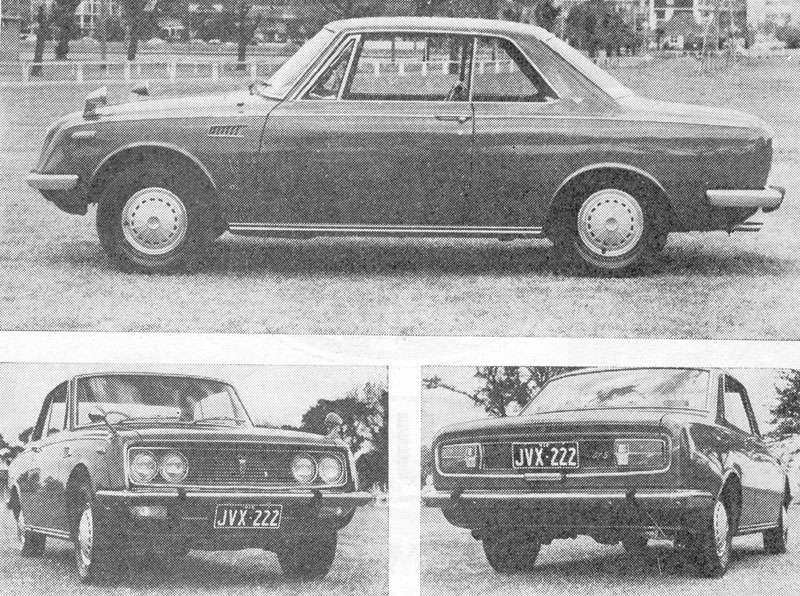

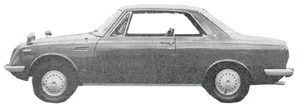

RT51 Toyota Corona 1600 GT Hardtop Coupe |
 |
| Engine: | 2R (Early Model 1500 2-door) | 4R (1600 S) | 9R ( 1600 GT ) |
| Firing Order: | - 1-2-4-3 | - 1-3-4-2 | - 1-3-4-2 |
| Type: | - 4-cylinder Inline
OHV |
- 4-cylinder Inline
OHV |
- 4-cylinder Inline
DOHC |
| Capacity: | - 1490 cc (90.9 ci) | - 1587 cc (96.8 ci) | - 1587 cc (96.8 ci) |
| Bore: | - 78mm | - 80.5mm | - 80.5 mm |
| Stroke: | - 78mm | - 78mm | - 78 mm |
| Compression Ratio: | - 8.0:1 | - 9.2:1 | - 9:1 |
| Compression Pressure: | - 155 psi at 250 rpm | - 156 psi at 250 rpm | - |
| Power: | - 55 kW @ 5000 rpm | - 71 kW @ 5800 rpm | - 82 kW @ 6200 rpm |
| Torque: | - 115 Nm @ 2600 rpm | - 129 Nm @ 4200 rpm | - 137 Nm @ 5000 rpm |
| Carburetor: | - Single Down draft
Asian-SU |
- Twin Side draft
Asian-SU |
- Twin Side draft,
Double choke Solex |
| Ignition Timing: | - 8 degrees btdc | - 8 degrees btdc | - |
| Idling Speed: | - 500 rpm | - 700 rpm | - |
| Final Drive Ratio: | - 3.70 (4 speed),
4.111 (auto). |
- 4.111(4 speed) | - 4.111 & 4.625
Limited Slip Differential(s). |
| Transmission Options: | - 2 speed Toyoglide automatic,
4 speed manual. |
- 4 speed manual. | - 5 speed manual. |
| Brakes: | - Front disc brakes and rear drums. | - Front disc brakes and rear drums. | - Front 10.6" disc brakes and rear 9" drums. |
| Suspension: | - Front Independent, coil springs, Rear semi-eliptical leaf springs. | - Front Independent, coil springs, Rear semi-eliptical leaf springs. | - Front Independent, coil springs, Rear semi-eliptical leaf springs, twin torque rods. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|
|
|
|
